70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace

Name: 70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace
Brand: Chitherm
Price: 1 USD

China 70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace wholesale

Model Number : HBF300 - 13

Model NO. : HBF300 - 13

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Steel Molding

Fuel : Electric

Atmosphere : Air

Effective Chamber Dimensions : 1550&; 1800&; 1400 (mm) (W× H× D)

Rated Temperature : 1250ºC

Maximum Temperature : 1300°c

Transport Package : Wooden Packaging

Specification : 1550&; 1800&; 1400 (mm) (W× H× D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Supply Ability : Customized

Customization : Available

Certification : ISO

Place Style : Vertical

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Contact Now

70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace

Product Specifications

Attribute	Value
Model NO.	HBF300 - 13
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	1550 × 1800 × 1400 (mm) (W×H×D)
Rated Temperature	1250°C
Maximum Temperature	1300°C
Transport Package	Wooden Packaging
Trademark	Chitherm
Origin	China
Certification	ISO

Industrial Electric Holding Furnace with Three-Point Independent Temperature Control

Equipment Name and Model

HBF300 - 13 High-Temperature Box Furnace

Application Areas

Primarily used in the sintering process of electronic components including ceramic capacitors, magnetic materials, and advanced ceramics.

Technical Specifications

Rated Temperature: 1250°C
Maximum Temperature: 1300°C
Furnace Chamber Dimensions: 560mm × 780mm × 700mm (W × H × D)
Heating Elements: Silicon-carbide rods with ceramic tube jackets
Temperature Control: Independent three-point control (top, middle, bottom)
Temperature Uniformity: ±5°C within 400×600×550mm area
Maximum Heating Power: 70kW
Heating Rate: ≤15°C/min

70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace

Thermal Design

Features alumina refractory materials with ceramic fiber insulation. The heating system divides the cavity into two independent zones with three-point temperature control for optimal uniformity. The firing support plate has a load capacity of ≥150kg.

Installation Requirements

Power Requirements: >90KVA, 3-phase 5-wire, 240/(380-415)V, 50Hz
Installation Space: Minimum 2800×2000×3000mm (D×W×H)
Environmental Conditions: 0-40°C, ≤80%RH, no corrosive gases

Product Tags:

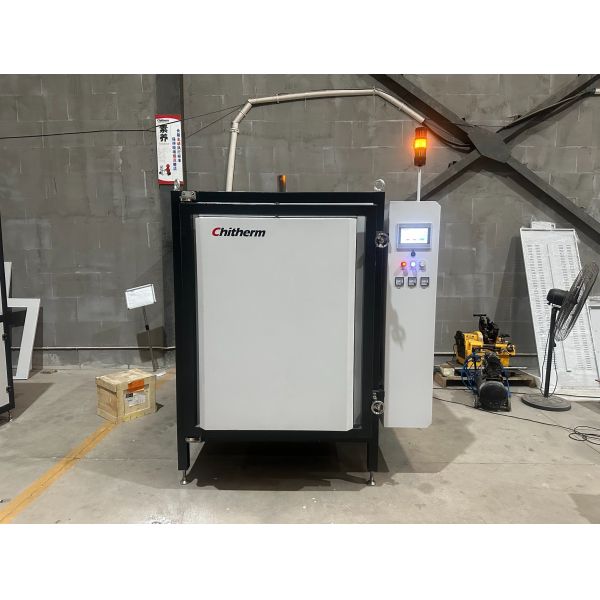

70kW Industrial Muffle Hot Air Drying Oven Electric Holding Furnace Images
