HBF52-17O High-Temperature Box Furnace
Rated 1650°C Max 1700°C | 350×300×500 mm Chamber Size | Alumina Lining
Equipment Overview
- Heating Element: Molybdenum disilicide rods (vertically installed, symmetrical left-right layout) ensure uniform furnace temperature.
- Application: Laboratory processes, easy operation.
Core Performance Parameters
| Model | HBF52-17O High-Temperature Box Furnace |
| Temperature Range | Rated temperature 1650°C, maximum 1700°C |
| Chamber Dimensions (W×H×D) | 350×300×500 mm |
| Chamber Material | Inner layer alumina products |
| Temperature Uniformity | ±5°C (tested at 1650°C for 2 hours) |
| Control System | 20 programs × 20 steps, 1-point temperature control |
| Safety Protection | Heating/door interlock, over-temperature, thermocouple break, low-pressure audible and visual alarms |
| Power | ≤25kW |
| Power Supply | Three-phase 220/380VAC, 50Hz, ≥34kVA, phase-shift control |
Installation & Operating Conditions
Environmental Requirements:
- Indoor installation, ambient temperature 0~40°C
- No flammable, corrosive gases, or vapors
Space Requirements:
- Floor area ≥5㎡, working area length ≥2.5m, width ≥2m, height ≥3m
- Total weight ~850kg, requires solid and level foundation
Power & Grounding:
- Dedicated three-phase five-wire power line (380±10%V, 50±2%Hz), prohibited from sharing circuits with high-power equipment
- Reliable grounding required
Gas Supply: Inlet pressure 0.2~0.4MPa
Key Features
- Excellent Temperature Uniformity: Symmetrical molybdenum disilicide rod design for precision processes
- Safe & Reliable: Multiple alarm protections (over-temperature, thermocouple break, etc.), interlock prevents misoperation
- Flexible Programming: 20×20-step program control meets complex process requirements

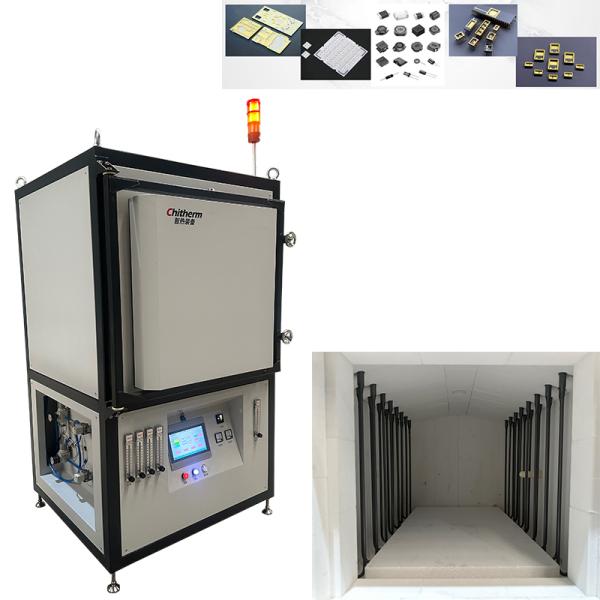

Detailed Photos
Delivery List
| Item | Note | QTY |
| Basic Compositions |
| Furnace | | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set |
| Key Parts |
| Heating Elements | MoSi2 | 1 Set |
| Thermocouple | THERMOWAY, B Type | 1 PC |
| Temperature Controller | CHINO | 1 Set |
| Monitor | Proface 10" touch screen | 1 Set |
| Spares |
| Heating Elements | MoSi2 | 1 PC |
Certifications
Packaging & Shipping

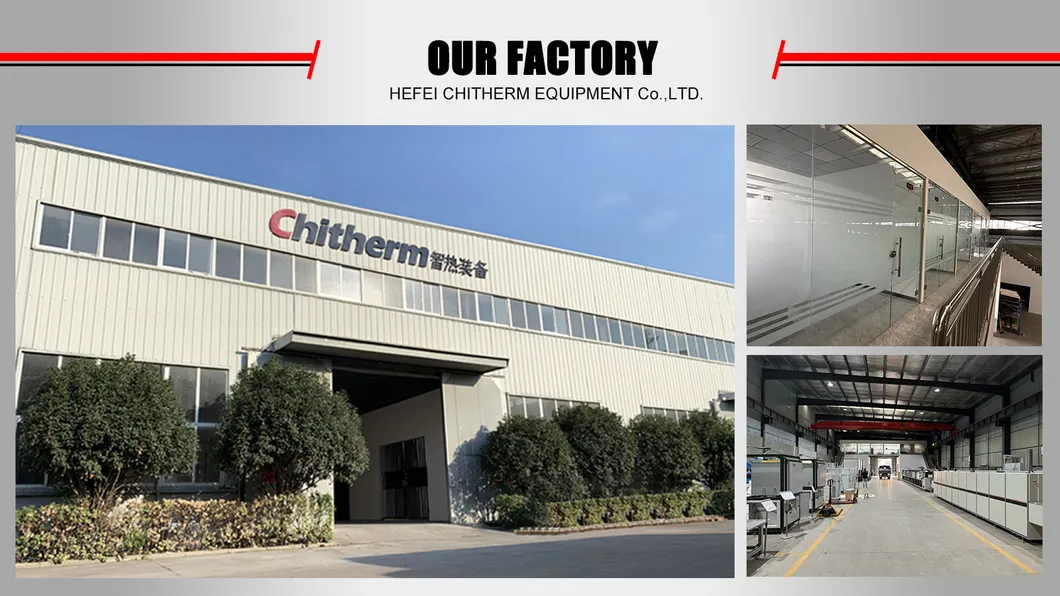

Company Profile
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.
Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.
These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
